MT-F Decoiler with Coil Car for Metal Strip

MT-F Decoiler with Coil Car for Metal Strip

MT-F Decoiler with Coil Car for Metal Strip
MT-F Decoiler with Coil Car for Metal StripMT-F Decoiler with Coil Car for Metal StripMT-F Decoiler with Coil Car for Metal StripMT-F Decoiler with Coil Car for Metal StripMT-F Decoiler with Coil Car for Metal Strip
CategoriesMT-F Heavy Duty Decoiler Machine
BrandHongEr
ModelMT-F
Functionuncoiler for automatic feeder
Featuredecoiler with coil car for metal coils
Nameheavy decoiler machine for press
Compactstraightener feeder for stamping
Usagemetal stamping equipment
attributecustomized with coil car, pressing arm
Update TimeDec 25,2024
Detail Information
MT-F Decoiler with Coil Car for Metal Strip

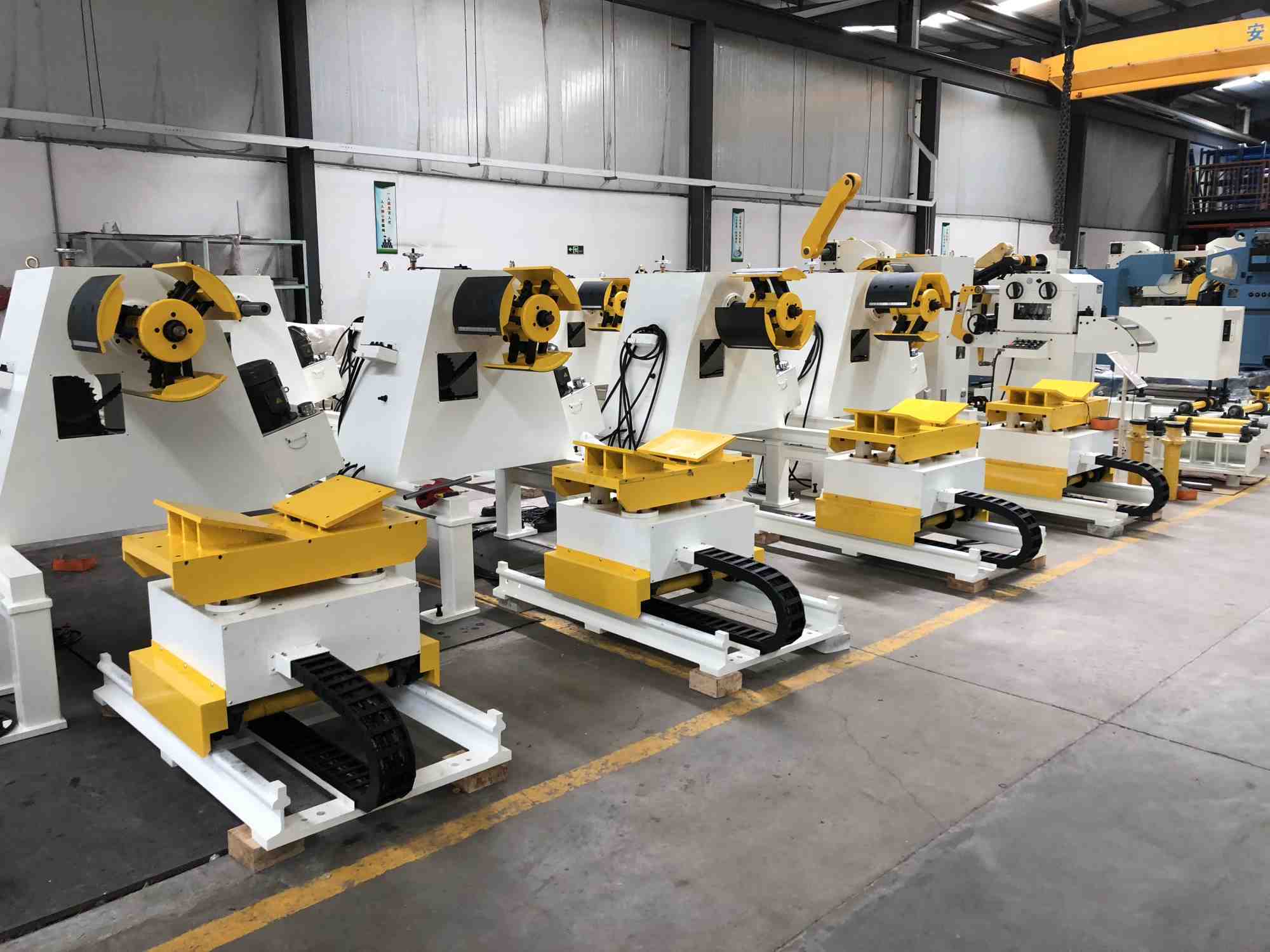

Photo Show
Description
MT-F decoiler machine with coil car
1, Suits for sheet metal coil in thickness from 0.2mm to 3.2mm;

2, Decoiler is often used in metal stamping line for power press;

3, Decoiler works for heavy coil sheet like steel, stainless steel, carbon steel, aluminum coils, copper, GI steel;

4, Decoiler with coil car can help to load metal coil;

5, MT-F decoiler is with hydraulic expansion.

specification
Model
MT-400F
MT-500F
MT-600F
MT-700F
MT-800F
MT-1000F
MT-1200F
Coil width
400mm
500mm
600mm
700mm
800mm
1000mm
1200mm
Coil thickness
0.1-3.2mm
Coil I.D.
450-530mm
Coil I.D.
1200mm
Coil weight
3000kg
5000kg
Expansion
Hydraulic
Pressing arm
Pneumatic Type
Inveter
Delta, Taiwan
Speed
16m/min
Application
MT-F hydraulic uncoiler machine with coil car is suitable for heavy metal coils handling. It is compacted with straightener machine and automatic coil feeder machine for metal stamping.

MT-1000F

Decoiler machine for 1000mm width coil sheet
with coil car
exported to France


Metal stamping solution suggestion:
Decoiler + Straightener + NC servo feeder + Press

MT-800F

Uncoiler machine for 800mm width coil sheet
with coil car and pressing arm
exported to Mexico


Metal stamping solution suggestion:
Decoiler + Straightener + NC servo feeder + Press
Solution suggestion

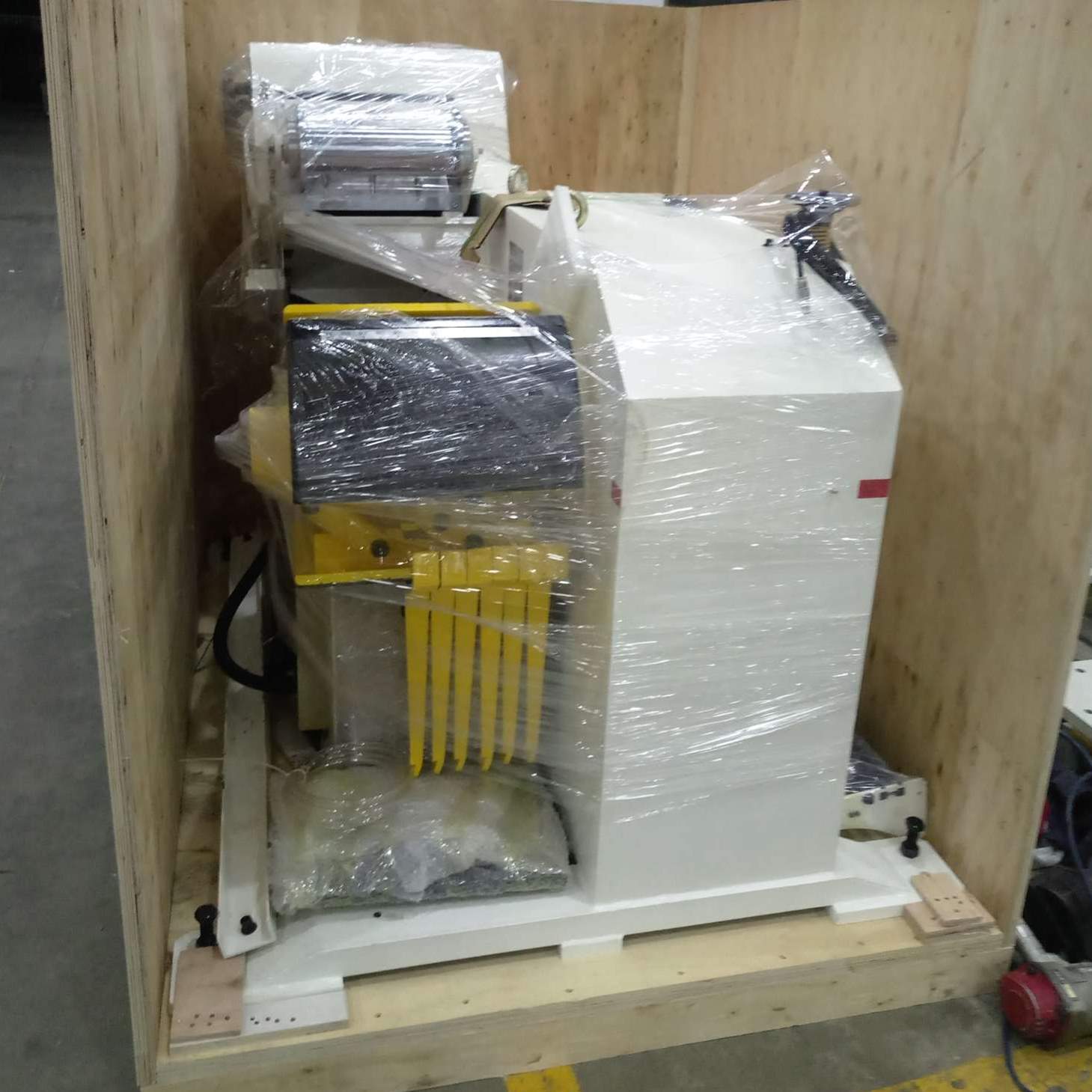

Package & Delivery
