MT-600F decoiler for metal coil handling
MT-600F decoiler for metal coil handling
| Categories | MT-F Heavy Duty Decoiler Machine |
|---|---|
| Brand | HongEr |
| Model | MT-600F |
| Function | Automatic Heavy Load Decoiling Machine |
| Feature | Heavy Duty Decoiler |
| Name | Hydraulic Uncoiler Machine |
| Compact | Straightening Machine |
| Usage | Big Heavy Duty Uncoiler (Decoiler) Machine |
| attribute | Material Strip Coiler |
| FOB port | SHENZHEN |
| Terms of Payment | L/C, D/A, D/P, T/T |
| Update Time | Nov 16,2024 |
Detail Information
MT-600F Undecoiler For Heavy Metal Coil Handling
Photo Show
Description

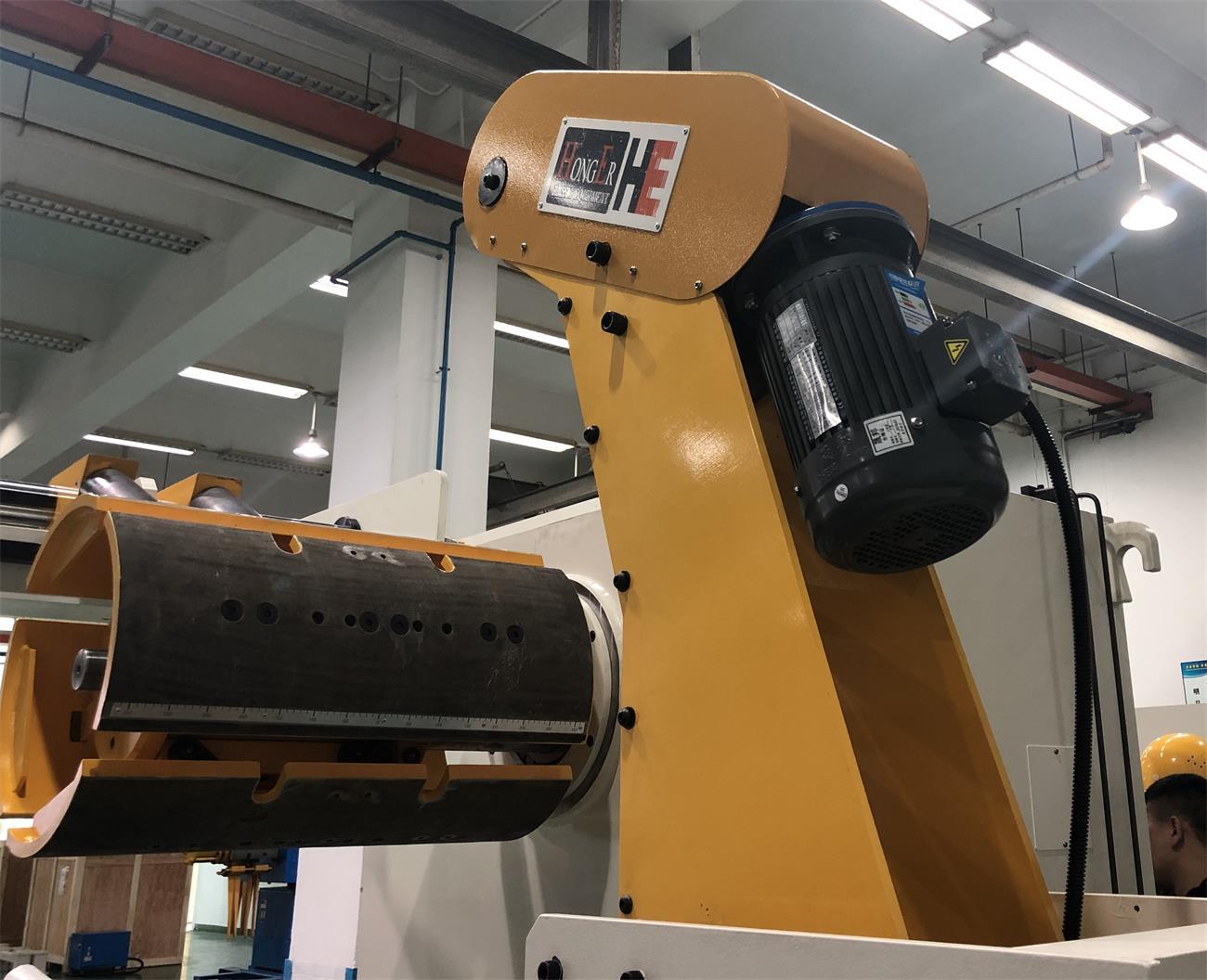

MT-600F decoiler machine
Usage:
1, Suits for sheet metal coil in thickness from 0.1mm to 3.2mm;
2, Used in decoiling heavy weight coil with 5 ton for metal stamping line or cutting line;
3, Works for material like steel, stainless steel, carbon steel, aluminum, copper, GI steel;
Features:
1, The mandrel is blackening to prevent oxidation and can load heavy metal sheet coil;
2, The expansion way is hydraulic;
3, The pressing arm is pneumatic type;
4, Coir car is optional;
Specification
Model |
MT-600F |
||||
Coil width(mm) | 600mm | ||||
Coil thickness(mm) |
0.1-3.2mm |
||||
Coil I.D.(mm) | 450-530mm | ||||
Coil O.D.(mm) |
1200mm |
||||
Meterial weight(kg) | 5000kg | ||||
Expansion | Hydraulic | ||||
Pressing arm | Pneumatic Type | ||||
Inverter | Delta, Taiwan | ||||
Application
MT-600F Coil Uncoil Machine is used in heavy duty metal coil handling line compacted with automatic straightener, feeder machine and press machine.
It works with Delta inverter to control speed;
The frame body is subject to sand blasting so as to remove the dust and weld spot and increase the adhesive of painting.

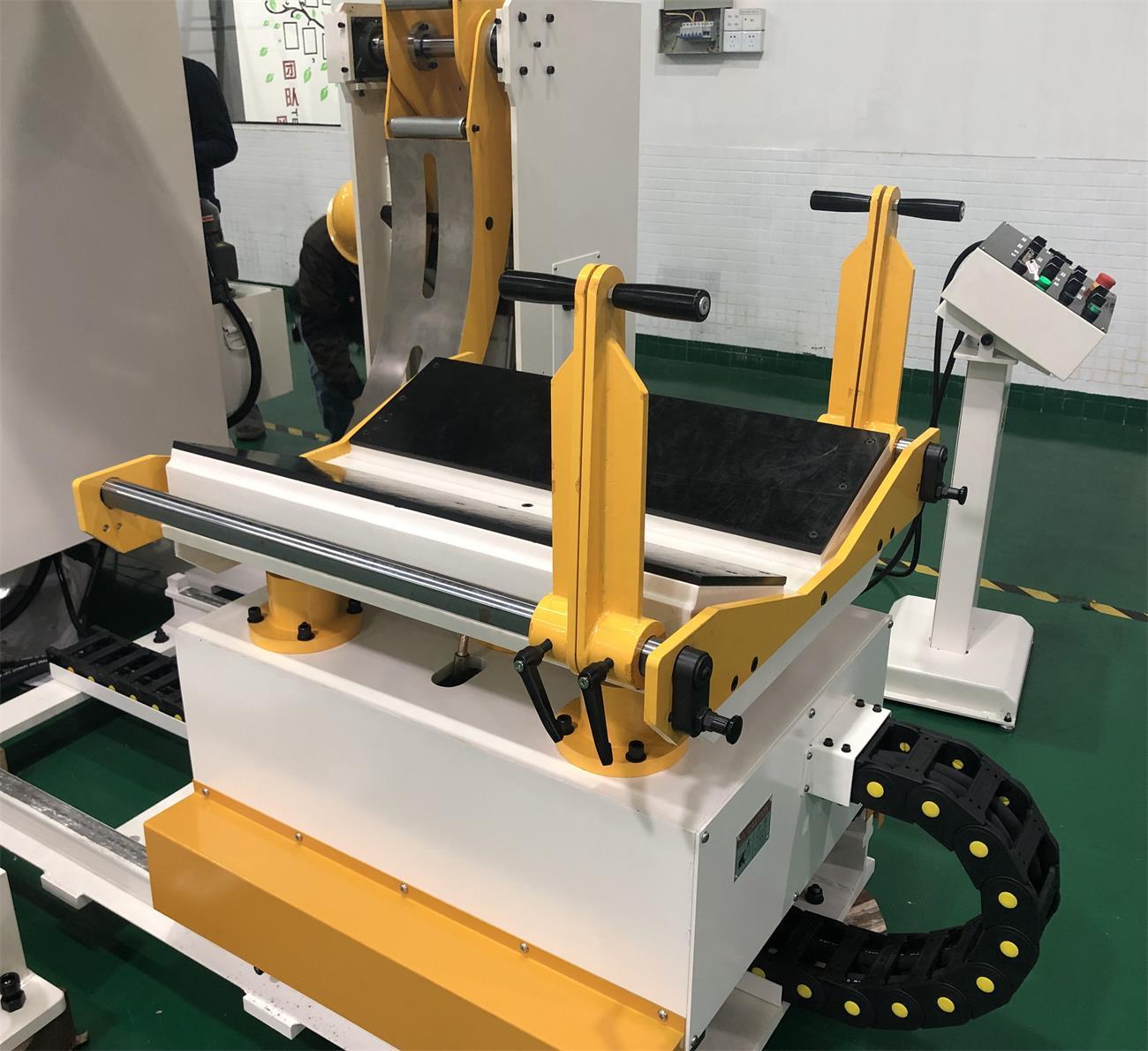

MT-600F automatic decoiler machine with coil car
exported to Canada.
Metal stamping solution suggestion:
Decoiler + Straightener + NC servo feeder + Press
